Emergency Alert Broadcast Automation
Broadcasting emergency alerts are an important service that broadcasters provide to the communities they serve, providing timely and accurate information concerning emergency events such as forest fires, floods, tornadoes, school (lock down) closings and Amber Alerts. The Radio and Television sector plays an important role in helping prevent injury, death and property damage.
Key features of emergency alert automation
- Easy upgrades made simple through software updates – no need to spend thousands of additional dollars buying new hardware every time alerting regulations or protocols change
- Guaranteed compliance with the Canadian Radio-television and Telecommunications Commission’s (CRTC) mandated requirement for licensed broadcasters to accept and broadcast Pelmorex™ NAAD (National Alert Aggregation and Dissemination) internet feeds adhering to the Common Alerting Protocol – Canadian Profile (CAP-CP)
- Easily adaptable to emergency alert automation requirements of jurisdictions using CAP (ITU x.1303) including the United States.
- Multi-lingual support, including indigenous languages
- Mapping function displays Common Alerting Protocol EAS emergency alert system for cable TV or digital signage visual alerts
- Available as a turn key supported device or DIY open source software
Emergency Alerting Systems
In a number of key jurisdictions, public emergency alerting has become a mandatory regulatory requirement for licensed broadcasters. For many small-to-medium sized stations, compliance with the applicable regulators can be both costly and complicated. OpenBroadcaster provides better, more cost-competitive services to the emergency alerting systems, broadcast automation space, with an open source, web-based software solution, managing and distributing emergency messages over radio, television, digital signage and cable TV channels.
OpenBroadcaster EAS emergency alert system facilitates the broadcast of unattended priority messaging within audio and visual alerts based on the Common Alerting Protocol, the world standard for transmitting priority messages. OpenBroadcaster offers its public emergency alerting solution as either a complete turnkey integrated broadcast solution, packaged alongside our broadcast automation, media asset management and other core offerings, or as a stand alone box that works with whatever a station is using. Indigenous languages are supported within the framework of our EAS emergency alert automation with audio and text alerts. Standard geographical classification location Geo codes use a numeric code to identify discrete areas, based on census districts. Alerts are only issued for regions and neighborhoods that match the alerting regions’ Geo codes. We inject EAS alerts into the broadcast chain in variety of ways, depending on your station setup. No two stations are exactly the same. Alerts issued using standalone alert player automation software enter the broadcast chain independently based upon their own merits.
CAP Audio Alerts
- Onboard analog stereo 1/8” mini output. Audio present only when a valid alert is being broadcast.
- GPIO trigger reverses DTR voltage with RS232. Can be used to switch an external relay when an alert message is played.
- BARIX Exstreamer at radio transmitter uses a priority port for incoming stream of emergency message
- Silence Detection using external third party hardware senses signal coming out of the Alert Player and mechanically switches a relay on your board.
- Integrated AXIA Digital AoIP (Audio over IP) Console senses an on demand Livewire stream of alert in conjunction with the Qor’s GPIO, switching channels in the broadcast chain console while EAS is in progress and switches back upon completion.
CAP Visual Alerts

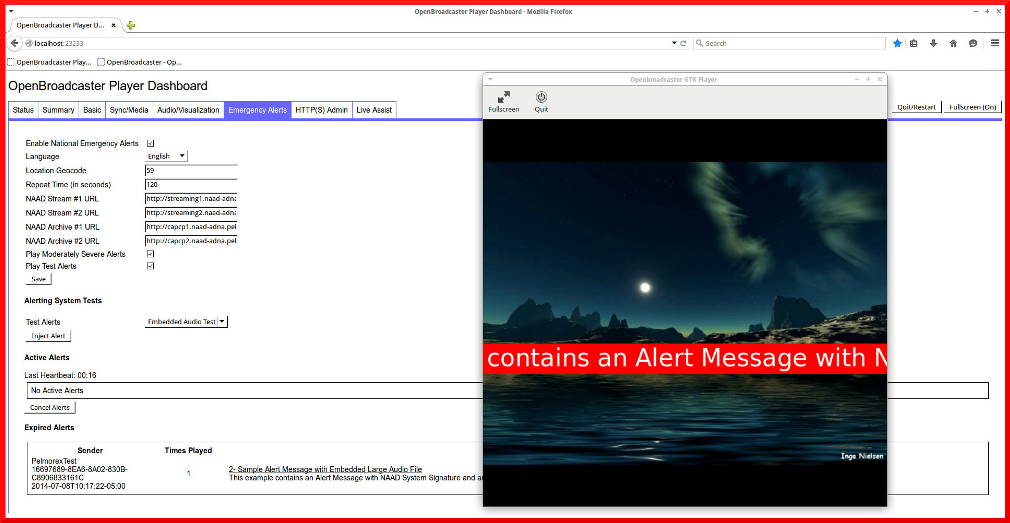

Applicable for over the air TV, Cable TV and digital signage applications. Normal visual alerts will be displayed. When there is a valid EAS alert, a red scrolling overlay will display the text of this message with accompanying audio.
- Onboard local video with Display Port displays an overlay when a valid CAP message is being broadcast.
- GPIO trigger using RS232 DTR when alert message is played, switching CATV channel on digital cable head end.
- Configuring streaming media server to detect new mount point of on demand stream
CAP Common Alerting Protocol
We can custom provide an emergency alert automation solution for your government organization and country based on CAP (Common Alerting Protocol)
Sign up for our Newsletter and receive a free operating manual for the online TV streaming broadcast automation media server and playout application.
Contact us for more info about your community radio & television project. We are here to help.
Please contribute to open source

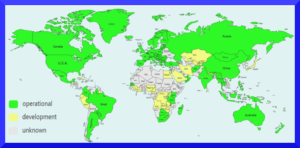

CAP Global Development Status
