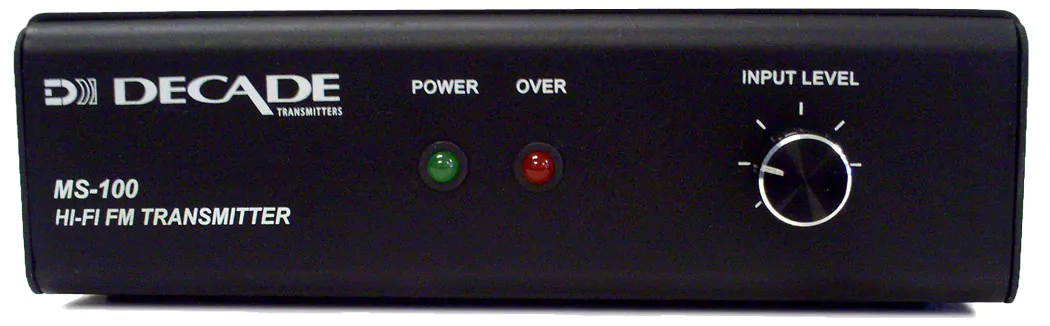

The MS100 is a professional grade low power FM transmitter operating in the commercial FM band (88.1 – 107.5 MHz). It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls) or outdoor (business parkings, tourist attractions, talking signs) short range broadcasting in a variety of applications: hearing assistance, translation, information, sound re-enforcement. Its outstanding RF and audio performances, ruggedness, reliability and versatility make the MS100 stand out from conventional hearing assistance systems.

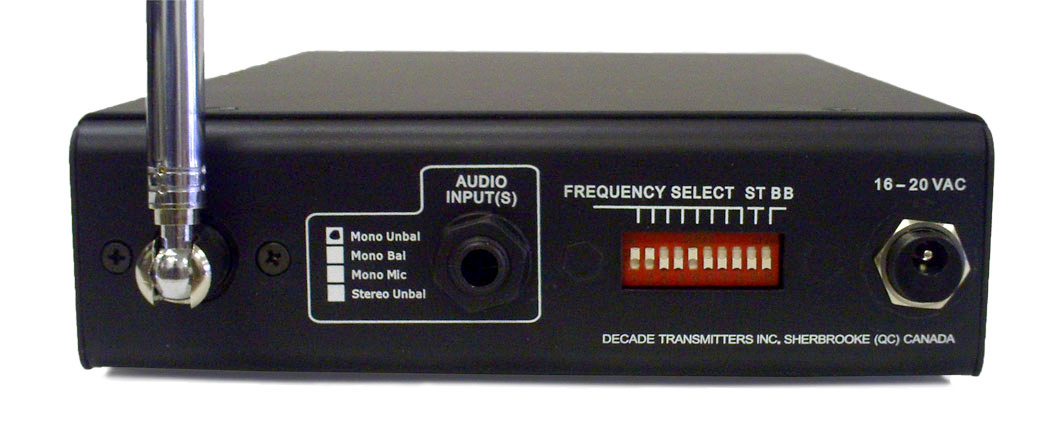

- User programmable frequency
- No manual tuning required
- Works with standard FM receivers
- Coverage of 150 feet or more with portable FM receiver, 500 feet or more with car radio
- Hi-Fi audio
- Adjustable input level with over modulation indicator
- Selectable bass boost and mono/stereo operation (stereo version only)
- Choice of 4 audio configurations
- Stereo 1/4-F audio input connector
- Choice of fixed antenna or UHF connector
- FCC part 15 and Industry Canada Bets-1, RSS-210 & RSS-123 certified
- All steel cabinet
- 3 years warranty
- Made in Canada
- Modulation: FM, 75 kHz deviation
- Frequency selection: 88.1 – 107.5 MHz
- RF power: 250 µV/m@3m (FCC Part 15 and IC RSS-210), 100 μV/m@30m (IC BETS-1), 1 mW (IC RSS-123)
- Load impedance (UHF connector): 50 Ω
- Spurious rejection: 40 dB min.
- Frequency response: 20 – 20 kHz (mono models), 20 – 15 kHz (stereo model)
- Harmonic distortion: 0.3% max.
- Signal-to-noise ratio: 70 dB min.
- Stereo separation: 35 dB min., 40 dB typ.
- Input sensitivity / impedance: -15 dBm to +22 dBm / 5 kΩ (mono unbal.), -13 dBm to +22 dBm / 10 kΩ (stereo unbal.), -10 dBm to + 22 dBm / 600 Ω (bal.), -60 dBm to 0 dBm / 950 Ω (mic.)
- Power supply: 110/16 VAC @ 300mA
- Dimensions: 6.3″ W x 10.5″ D x 1.75″ H
- Weight: 5 lb.
CERTIFICATION STANDARDS: FCC Part 15, CNR-123, CNR-210 HOMOLOGUATION #: FCC: MCHMS-100, INDUSTRY CANADA: CAN 1857102155, CAN 1857231121
